Admin Configuration

Perform the following steps to configure a solution for a BL admin. Only ABB employees can be Ability Administrators.

Prerequisites:

• access to a portal ( reference portal info page )
• user has Ability Administrator access.
• Solution Administrator has already logged into the portal to register their username.
• Solution Administrator has provided the necessary tenant information.

Sample Input

Below is an example of a valid solution request.

Parameter	Value
Solution Name	ADP
Solution Scope	instance
Solution Namespace	adp.demo
Solution Administrator	first_name.last_name@country.abb.com
Background Application	BGA
Tenant 1 Alias	ADP (abboaa.onmicrosoft.com)
Tenant 1 Id	3dbfa739-4be4-438e-bf17-bbcf853088db
Tenant 1 Identity Provider	ABB Ability(tm) Issuing TEST CA 02
Tenant 1 Self Signup	enable
Tenant 1 Admin Identity	98709be7-eb4f-4b3f-a15d-a33b970e5dac
Tenant 1 Admin Name	ADP Tenant Admin 01
Tenant 1 Admin Email	adpAdmin01@abboaa.onmicrosoft.com
Tenant 1 Non-Admin Identity	ee5e41bb-3f24-436c-848e-7d2a441ac524
Tenant 1 Non-Admin Name	ADP User 01
Tenant 1 Non-Admin Email	adpUser01@abboaa.onmicrosoft.com
Tenant 2 Alias	UST (abboaa.onmicrosoft.com)
Tenant 2 Id	3dbfa739-4be4-438e-bf17-bbcf853088db
Tenant 2 Identity Provider	ABB Ability(tm) Issuing TEST CA 02
Tenant 2 Self Signup	enable
Tenant 2 Admin Identity	3505fea9-ab50-4931-b740-b3a95c379485
Tenant 2 Admin Name	US Tenant Admin 01
Tenant 2 Admin Email	usAdmin01@abboaa.onmicrosoft.com
Tenant 2 Non-Admin Identity	ef6eda9b-6e52-473b-8b72-2bcdd19cf8c5
Tenant 2 Non-Admin Name	US User 01
Tenant 2 Non-Admin Email	usUser01@abboaa.onmicrosoft.com

Define solution

1. Login to the ABB Ability tenant with a user that has Ability Administrator access.

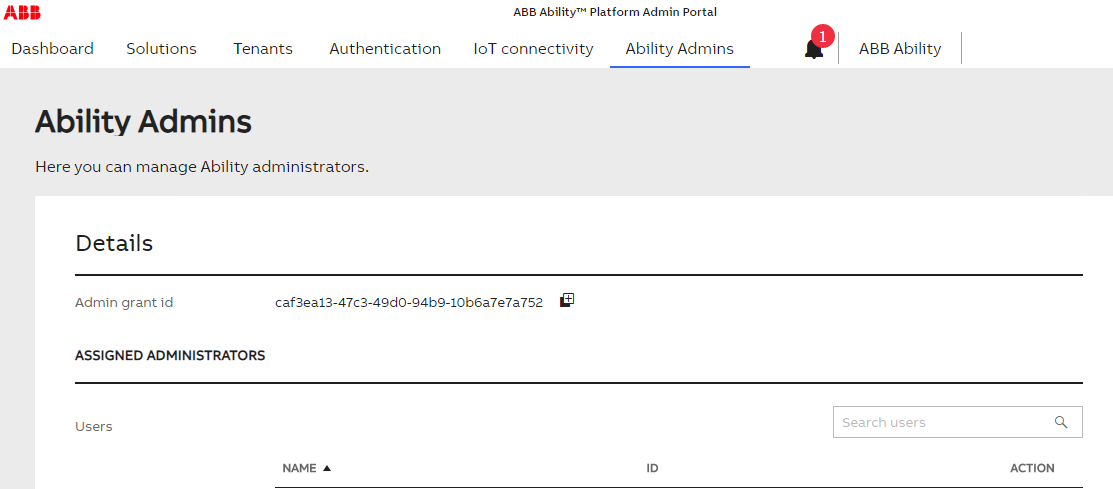

2. Verify your user is listed as an Ability Admin.



3. Both Tenants will use the ABB Ability(tm) Issuing TEST CA 02. Navigate to Authentication and then select Certificates.

4. Below is the certificate for ABB Ability(tm) Issuing TEST CA 02.

-----BEGIN CERTIFICATE-----
MIIEIDCCAwigAwIBAgIQVJ5s1NzrvLcoStU43GEGvjANBgkqhkiG9w0BAQwFADCB
jDELMAkGA1UEBhMCQ0gxDjAMBgNVBAcTBUJhZGVuMSUwIwYDVQQKExxBQkIgSW5m
b3JtYXRpb24gU3lzdGVtcyBMdGQuMR8wHQYDVQQLExZGT1IgVEVTVCBQVVJQT1NF
UyBPTkxZMSUwIwYDVQQDExxBQkIgQWJpbGl0eSh0bSkgVEVTVCBSb290IENBMB4X
DTE5MTAxNTAwMDAwMFoXDTM0MTAxNDIzNTk1OVowgaIxCzAJBgNVBAYTAkNIMQ4w
DAYDVQQHEwVCYWRlbjEkMCIGA1UEChMbQUJCIEluZm9ybWF0aW9uIFN5c3RlbXMg
THRkMQ8wDQYDVQQLEwZQRzk5NjQxHzAdBgNVBAsTFkZPUiBURVNUIFBVUlBPU0VT
IE9OTFkxKzApBgNVBAMTIkFCQiBBYmlsaXR5KHRtKSBJc3N1aW5nIFRFU1QgQ0Eg
MDIwggEiMA0GCSqGSIb3DQEBAQUAA4IBDwAwggEKAoIBAQDZuD5B3SG0IRgNFvI8
1wTK6AtCZ/Qm/UVGHo1zEN4+yRutYGlqqL7lL2MbOhXw7qgQmFLQFYSCPbzGWIhO
A+KpiBUYDUUuF/XX+lC7h85Gd1L9kkH8eaJrxJ32ypumMDhkuiR/pxTbw099ZAxp
gBjUWQdc+cnkbLwYUpGufuYUw1DIHqM8SpuMlKtSV/dVXMCEkW44Hmi2kfvVE5pr
iOGZQ5Ghp7CNxpO3/siCCjg8iR0IyDsa6N1+9y33tmDZT7Rkmpt2DDlmYt1QsIoI
y6+87jcI6/WlyX+Efb6jb96bJdWW71nGA7e5ss9nZyxWkPT3MrkGhiRImHiFXqno
AD6NAgMBAAGjZjBkMA4GA1UdDwEB/wQEAwIBBjASBgNVHRMBAf8ECDAGAQH/AgEA
MB0GA1UdDgQWBBRgNAoy3RhvHOcsqW93XXjbNwTXqjAfBgNVHSMEGDAWgBRl801t
2oo7YZ/8BiTrnrzrbku84jANBgkqhkiG9w0BAQwFAAOCAQEAk/eJUX15xdPc1omd
UsfTnP7NuBGQd2vvXoXPD4RR9TAk9/sOs5hAVy8yx7S7631BXAOJeIkgKoE5m0qO
/D0GIegPJpiCobnLOyqD7Cq3bKREy50splvEXnmyfhs5vpn5pE2iTbGX8W7vvYoI
2O73JqeJSIuNk25h5spVPhyUVha2B3pRn12Gy3XpB22NdPQ2n6jZyd7SJf1QCFjn
bLTAQ2G8tGmt4BHLEhYiWMMGqB+l3squxX9ILhgidRuGgXghTGXdvEz9V1QvLy+E
dDNP9f0Xw7wz1EYOEe77+BvgPz1LKdyxgntf+5W1yNI/m93KFvu1FDndiEplqkCD
OkBSvg==
-----END CERTIFICATE-----

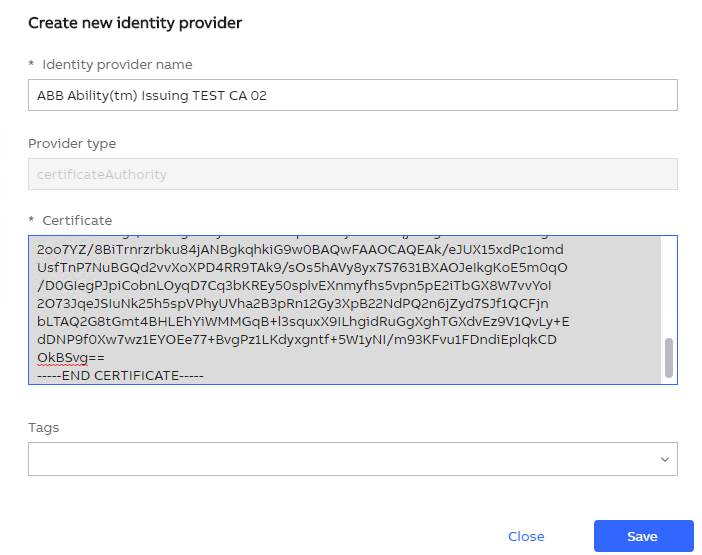

5. On the Identity Providers page, click New certificate and enter ABB Ability(tm) Issuing TEST CA 02 for Display Name and copy the text contents above to Certificate.

6. If the certificate shows it is not verified, contact Operations to validate the certificate.

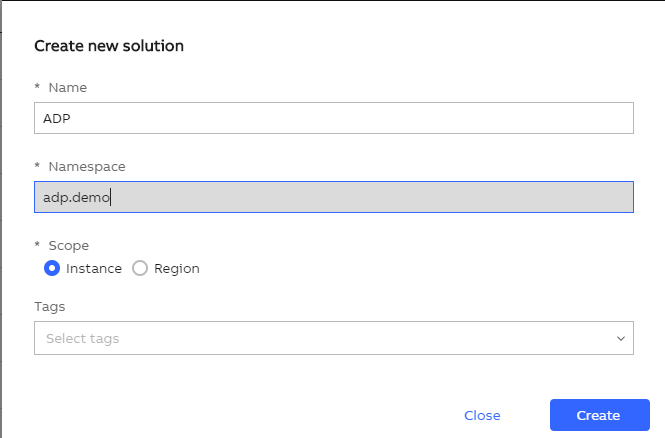

7. Navigate to the Solutions tab and select New Solution. Provide the solution name, scope and namespace. Click save.

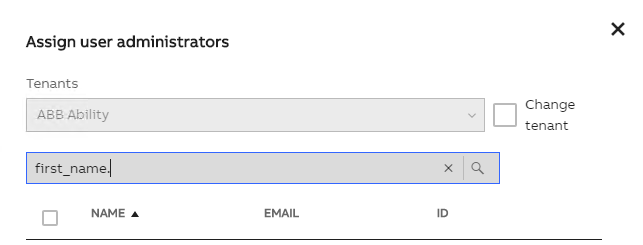

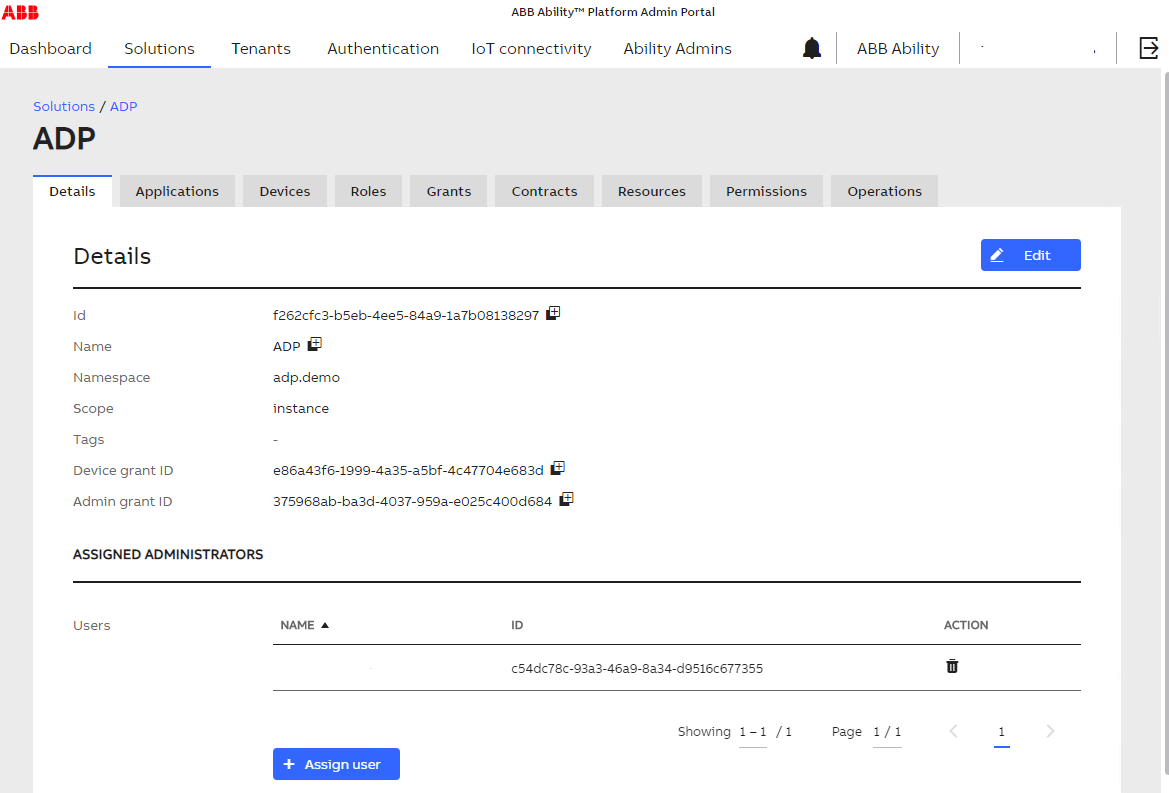

8. Add the BL Solution Admin, identify by first_name.last_name@country.abb.com, as an administrator for the solution. Navigate to Solutions -> ADP -> Details. Scroll down to select Assign User. Use the search box to search for your user and assing it to this Solution.

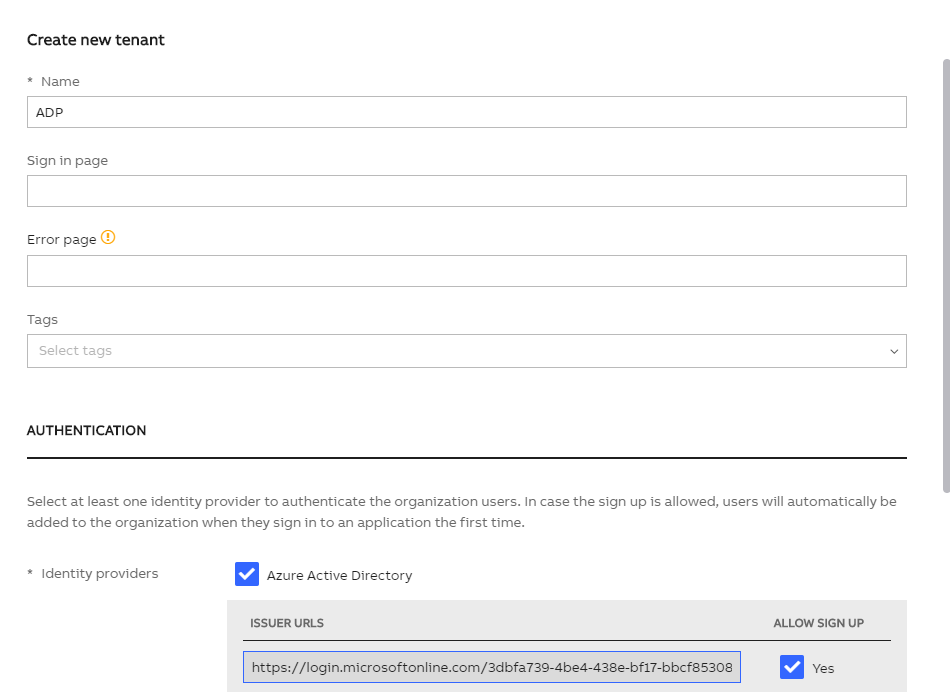

9. Navigate to Tenants and add the tenants for this solution. Substitute the Tenant 1 Id info as shown https://login.microsoftonline.com/3dbfa739-4be4-438e-bf17-bbcf853088db/v2.0. In this example, the same tenant is used for both. Select Allow Signup as specified and also include ABB Ability(tm) Issuing TEST CA 02 as an Identity Provider. Repeat for Tenant 2 Id



10. For each tenant, add the Admin and Non-Admin users as specified in the table.

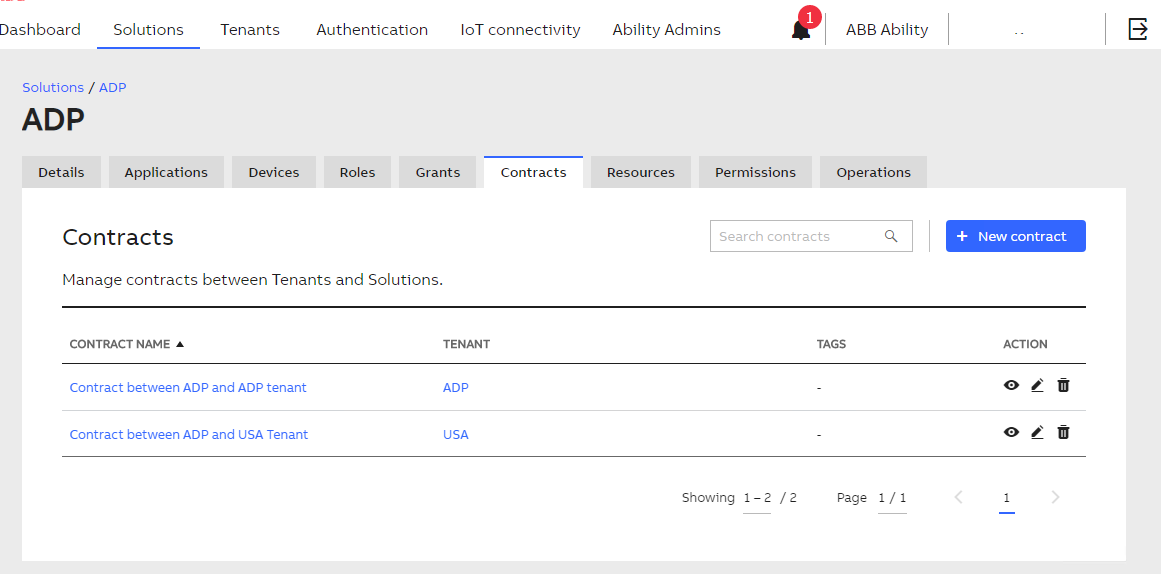

11. Navigate back to the solution and select the Contract Tab. Add each tenant created to the solution.

TIP

Only Ability Admin can create Background Applications and assign Grants to them. Once the Solution Admin defines the grant for the Background Application, they will contact the Ability Admin to assign the Grant.

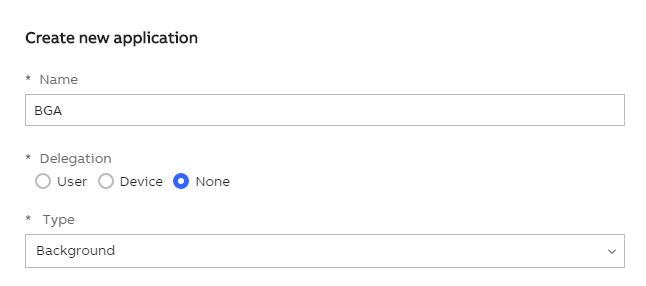

12. If the solution request requires a Backgroud Application, select the Application Tab. Click New Application and set the name to BGA for Background Application, none for Delegation, and click save.

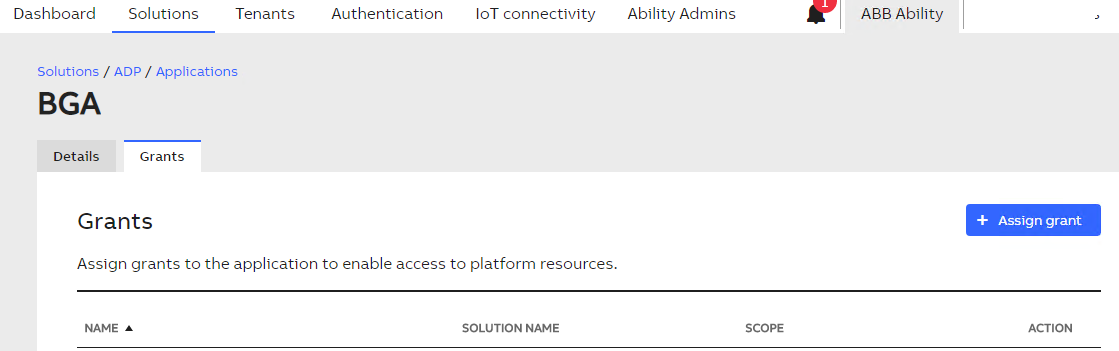

13. After the Solution Admin defines the desired Grant for the background application, the Solution Admin will provide the name of the Grant. Once provided, edit the BGA application, select the 'Grants' tab, assign the grant specified by the Solution Admin, and click update.

This completes the steps for an Ability Admin to configure a solution for a Solution Admin.

Next Steps

If these steps can be completed without error, the Solution Admin can complete the configuration without additional assistance from the the Ability Admin.
